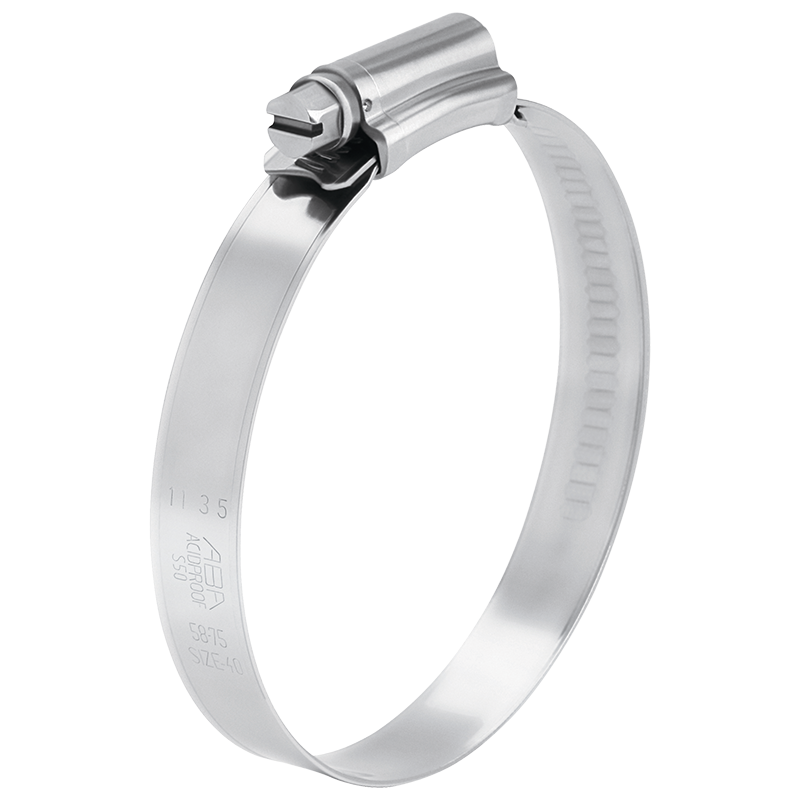

Scandvik SAE 52 SS Hose Clamp 66095
SCANDVIK SCA-66095
Rolled edges eliminate danger of damage to hose. Joining of band to housing allows the least possible deviation from circular. Extra wide threads are stamped. Band and screw threads are properly pitched rendering the clamp virtually immune to vibration back-off. Mfg. No. SAE Min. Max. GEM/SX5 Metric 8 mm 12 mm AWAB316017 3 3/8″ 9/16″
Read More “Scandvik SAE 52 SS Hose Clamp 66095”
Description
- Rolled edges eliminate danger of damage to hose.
- Joining of band to housing allows the least possible deviation from circular.
- Extra wide threads are stamped.
- Band and screw threads are properly pitched rendering the clamp virtually immune to vibration back-off.
| Mfg. No. | SAE | Min. | Max. |
| GEM/SX5 | Metric | 8 mm | 12 mm |
| AWAB316017 | 3 | 3/8″ | 9/16″ |
| AWAB316017 | 4 | 7/16″ | 11/16″ |
| AWAB316020 | 6 | 1/2″ | 13/16″ |
| AWAB316024 | 8 | 5/8″ | 15/16″ |
| AWAB316032 | 12 | 7/8″ | 1-1/4″ |
| AWAB316038 | 16 | 1-1/16″ | 1-1/2″ |
| AWAB316044 | 20 | 1-1/4″ | 2″ |
| AWAB316050 | 24 | 1-1/2″ | 2-1/4″ |
| AWAB316057 | 28 | 1-1/4″ | 2-1/4″ |
| AWAB316057 | 32 | 1-1/2″ | 2-1/2″ |
| AWAB316064 | 36 | 1-3/4″ | 2-3/4″ |
| AWAB316070 | 40 | 2″ | 3″ |
| AWAB316076 | 48 | 2-1/2″ | 3-1/2″ |
| AWAB316095 | 52 | 2-3/4″ | 3-3/4″ |
| AWAB316114 | 64 | 3-1/2″ | 4-1/2″ |
| AWAB316140 | 80 | 4″ | 5-1/2″ |
| AWAB316165 | 96 | 5“ | 5-1/2″ |
| AWAB316178 | 104 | 5-1/2″ | 7″ |
| AWAB316203 | 120 | 6-1/2″ | 8″ |
| AWAB316232 | 138 | 7-5/8″ | 9-1/8″ |
| AWAB316257 | 154 | 8-5/8″ | 10-1/8″ |
| AWAB316283 | 170 | 9-5/8″ | 11-1/8″ |
| AWAB316308 | 186 | 10-5/8″ | 12-1/8″ |
| AWAB316330 | 200 | 11-1/2″ | 13″ |
| AWAB316381 | 232 | 13-1/2″ | 15″ |
Additional information
| Weight | 0.1000 lbs |
|---|---|
| Dimensions | 0.0000 × 0.0000 in |
