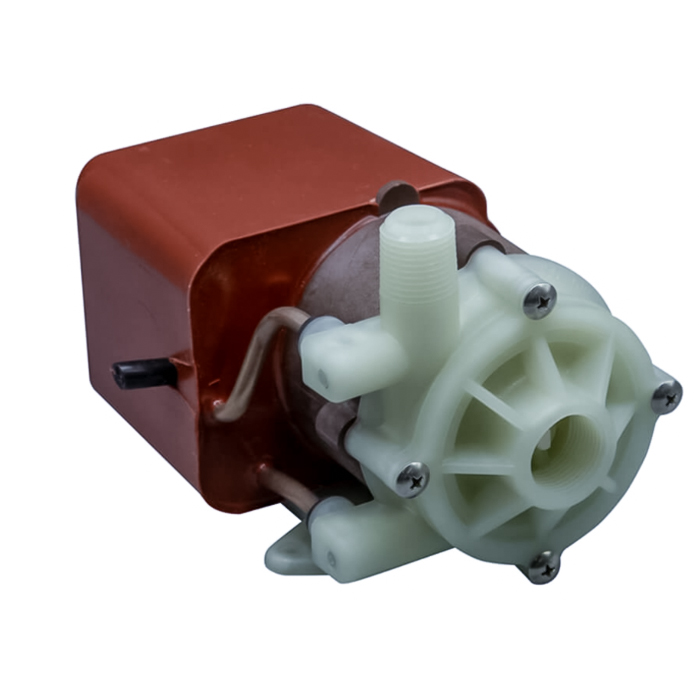

March Pumps – LC-3CP-MD 115V, Submersible and Open Air Magnetic Drive Pump – 0130-0158-0200

• Polypropylene -Front and Rear Housing, Impeller-
• Cupric Nickel -Cooling Tube-
• Buna N -O-Ring, Cooling Tube Seal-
• Ceramic -Shaft, Thrust Washer-
• Ceramic Magnet

Download March-Pumps-LC-3CP-MD-Manual.pdf

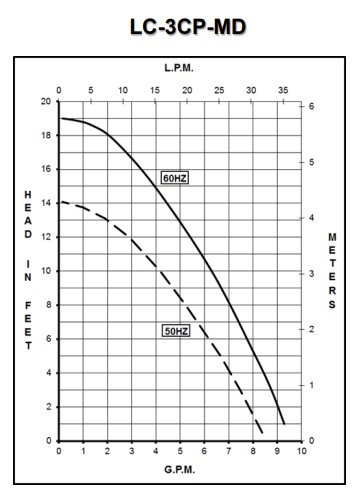

Download March-Pumps-LC-3CP-MD-Pump-Curve.pdf

About March Pump

March Pump is the Originator and US Manufacturer of the Centrifugal Sealless Magnetic Drive Pump for Chemical, Industrial, Medical, Marine, Solar and OEM applications.

March mag drive centrifugal pumps are designed to eliminate mechanical seals, along with the costs and issues associated with them.

How Does a Magnetic Drive Pump Work?

The shaft of the motor does not extend into the interior of the pump; instead, the wet end of the pump and the motor are two separate parts connected by a motor bracket. The attraction of a drive magnet and an impeller magnet causes them to spin in synchronization, and the only moving part to touch the liquid is the impeller. In this way, the design of a mag drive pump eliminates the need for a potentially leaky shaft seal.

March Pumps Mag Drive Centrifugal Pump Specifications Range

• Flows from 1/2 gpm to 200 gpm
• Heads up to 160 feet
• Plastic or metallic construction
• AC, DC, Explosion Proof, and Air Motors
• Submersible and Non-Submersible

Chemically Resistant Pumps

Magnetic drive pumps are ideal for chemical transfer applications to deliver fluids efficiently at a specific flow rate. Fluids include water, solvents, chemicals, and acids.

Since the design of a mag drive pump eliminates the shaft seal and the possibility of leakage, magnetic drive pumps excel in applications involving corrosive, toxic, flammable, expensive, or environmentally hazardous liquids, including solvents, chemicals, and acids.

• Wet End: Polypropylene (Front and Rear Housing, Impeller), Cupric Nickel (Cooling Tube), Buna N (O-Ring, Cooling Tube Seal), Ceramic (Shaft, Thrust Washer), Ceramic Magnet
• Uses: Submersible or Open Air
• When submerged, the following is also in contact with the solution: Epoxy, Stainless Steel, Noryl, Cord
• Max Internal Pressure: 25 PSI / 1.7 bar
• Max Liquid Temperature: 130 °F / 54 °C
• Note: Product image may be different than actual product received.




  Item	Part Number	Qty	Description
  	0130-0158-0200	1	LC-3CP-MD, 1 Phase, 115V, Complete Standard Pump
  	0130-0159-0200	1	LC-3CP-MD, 1 Phase, 230V, Complete Standard Pump
  1	0823-0008-1000	4	#10-32 x 1-1/2” Long Screw (Stainless)
  2	0130-0021-1000	1	Cover with 3/4” FPT Inlet (Polypropylene)
  3	0130-0011-1000	1	3/32” CS x 2-13/16” OD Cover “O” Ring (Buna N)
  4	0130-0028-1000	1	Thrust Washer (Ceramic)
  5	0130-0024-1000	1	Shaft (Ceramic)
  6	0130-0020-0100	1	Impeller with Bare Ceramic Magnet (Polypropylene)
  7	0130-0019-0100	1	Rear Housing with 1/2″ MPT Outlet & Plug Assembly (Polypropylene)
  8	0130-0025-1000	1	3/32” CS x 3” OD Bracket “O” Ring (Buna N)
  9	0130-0043-0200	1	Drive Magnet
  10	0125-0007-1000	2	Cooling Tube Seal (Buna N)
  11	0130-0132-1000	2	Flat Head #10-32 x 3/8″ Long Base Screw (Stainless)
  12	0125-0037-1000	1	Mounting Base (Polypropylene)
  13	0125-0110-1000	1	Plug for Motor Bracket
  14	0210-0008-1000	1	1/16” CS x 7/16” OD “O” Ring (Viton)
  15	Not Available	N/A	L.C. Epoxy Motor, Bracket, Cord Assembly
  WEK	0130-0115-0200	1	Wet End Kit (Items: 1, 2, 3, 4, 5, 6, 7, 8, 10)
