March Pump’s industrial TE-5C-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 17 gallons per minute at 4 feet, and its maximum head is 29 Feet (12PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Viton, and Ceramic. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. There are two standard motors. The first is a 1 Phase 60 hertz 115/230V and 50 hertz 110/220V 0.2 horsepower totally enclosed fan cooled motor.  The second is a 3 Phase 60 hertz 230/460V and 50 hertz 190/380V IEC totally enclosed 0.18 horsepower fan cooled motor.  There are performance differences between the hertz options.  The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March TE-5C-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-5C-MD is suitable for your application, please contact March Pump.

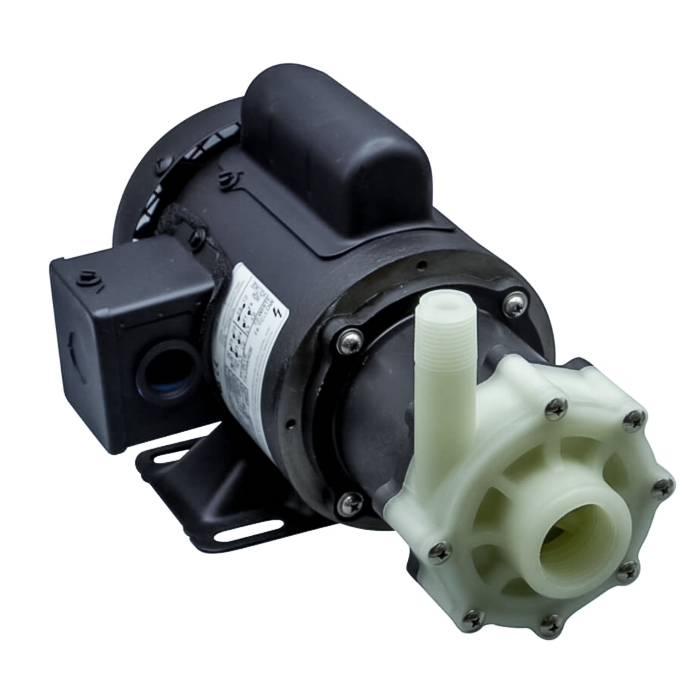

March Pumps – TE-5C-MD 1Ph 1/5HP Weg Magnetic Drive Pump – 0150-0214-0100

• Polypropylene -Front and Rear Housing, Impeller-
• Viton -O-Ring-
• Ceramic -Shaft, Thrust Washers-

About March Pump

March Pump is the Originator and US Manufacturer of the Centrifugal Sealless Magnetic Drive Pump for Chemical, Industrial, Medical, Marine, Solar and OEM applications.

March mag drive centrifugal pumps are designed to eliminate mechanical seals, along with the costs and issues associated with them.

How Does a Magnetic Drive Pump Work?

The shaft of the motor does not extend into the interior of the pump; instead, the wet end of the pump and the motor are two separate parts connected by a motor bracket. The attraction of a drive magnet and an impeller magnet causes them to spin in synchronization, and the only moving part to touch the liquid is the impeller. In this way, the design of a mag drive pump eliminates the need for a potentially leaky shaft seal.

March Pumps Mag Drive Centrifugal Pump Specifications Range

• Flows from 1/2 gpm to 200 gpm
• Heads up to 160 feet
• Plastic or metallic construction
• AC, DC, Explosion Proof, and Air Motors
• Submersible and Non-Submersible

Chemically Resistant Pumps

Magnetic drive pumps are ideal for chemical transfer applications to deliver fluids efficiently at a specific flow rate. Fluids include water, solvents, chemicals, and acids.

Since the design of a mag drive pump eliminates the shaft seal and the possibility of leakage, magnetic drive pumps excel in applications involving corrosive, toxic, flammable, expensive, or environmentally hazardous liquids, including solvents, chemicals, and acids.

• Wet End: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
• Motor Options: Available in Explosion Proof
• Max Internal Pressure: 50 PSI / 3.4 bar
• Max Liquid Temperature: 190 °F / 87 °C
