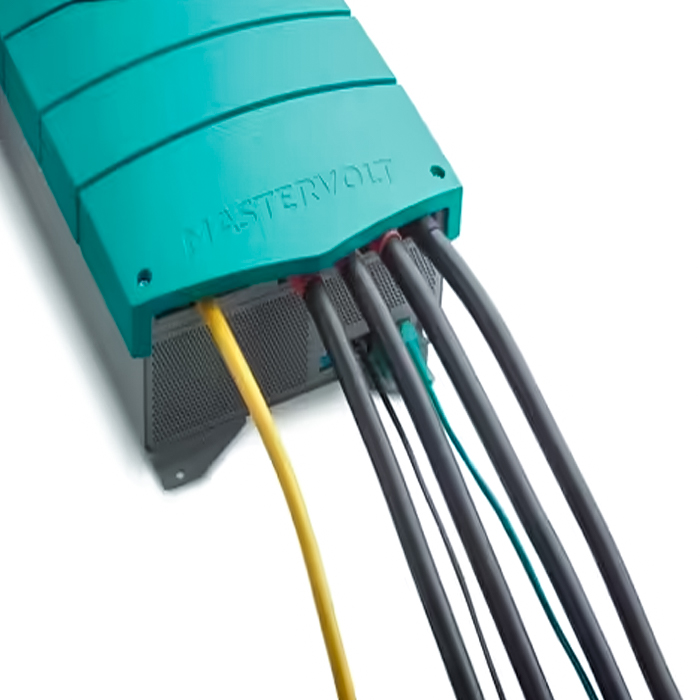

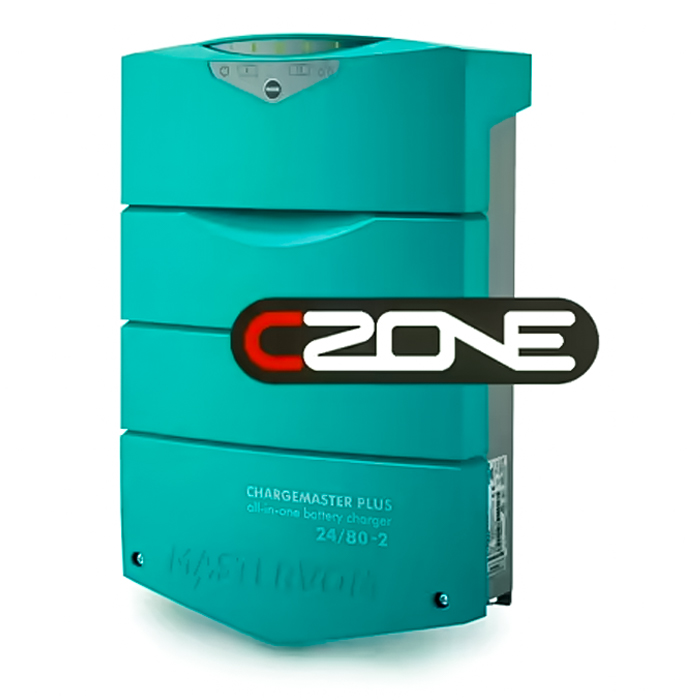

Mastervolt ChargeMaster Plus 24V / 80A – 2 Banks CZone Marine Battery Charger – 44320805 – 44320805
The Mastervolt ChargeMaster Plus 24/80-2 CZone is the next generation of battery chargers that integrates multiple functions into one single device.
Replacing auxiliary chargers, battery isolators and VSR, ChargeMaster Plus reduces system complexity and cost.
MFG Number: MAR-44320805 | BOW Item: 610932
$2,799.68
Shop Online — Ship to You or Pick Up In-Store
Fast Shipping — Order online now and get it delivered anywhere in the U.S.
Buy online now — choose your store, and we’ll reserve your order for pickup.
Availability: 1 in stock
Pickup Today (Same Day or Next Day):
- BOW Fort Lauderdale - 1 in stock
With the new Battery’s Best Friend architecture, the ChargeMaster Plus is capable of charging a multitude of battery chemistries, sizes and voltages. All batteries are charged with the fast and safe 3-step+ charge method.
Global Charging
The Mastervolt ChargeMaster Plus handles worldwide AC voltages and frequencies. Resisting large voltage fluctuations and high temperatures, it keeps working in harsh environments. For marine and mobile markets, ChargeMaster Plus is CE, E-mark, ABYC, UL, SAE, CEC and RCM/C-Tick compliant.
System Simplicity
Nowadays, equipment must be self-explaining. The ChargeMaster Plus 24/80/2 displays the charge phase of all three outputs in an understandable way. Robust and ergonomic connections save installation time. An integrated VSR eliminates the need for additional components and ensures that the alternators energy is funnelled through to the batteries.
Powerful Connections thanks to CZone Integration
In modern applications, all electrical components work together. The CAN-based MasterBus enables the ChargeMaster Plus to communicate with displays, shunts and power systems including communication standards like CZone®, NMEA 2000 and CANopen (through additional interfaces).
Models with the addition CZone do not only support MasterBus, but also support CZone and NMEA 2000 communication, without the need of additional interfaces. This ChargeMasters Plus series can be configured via MasterBus or will accept a CZone configuration file just like any other CZone device. Other communication standards like ModBus, CANopen, LinBus, etc. are supported via additional interfaces.
Features:
- Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR.
- Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger
- Charges multiple batteries while being underway.
- Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 °C.
- Safe Charge: quickly recognize the State of Charge for extended battery life.
- Very wide operating range of 80-275 V AC, 35-70 Hz.
- Compact, easy to connect and quick to install.
- HS Code 8504.40.9550
Technical Specifications for 44320805
| Nominal output voltage | 24 V |
| Secondary output voltage | 14.25 /28.5 V (12/24 V) |
| Secondary output current | 15 A at 12 V / 20 A at 24 V (adjustable) |
| Max. charge current per output | 80 A |
| Max. AC current (230 V / 120 V) | 11.75 A / 23 A |
| Total charge current | 80 A at 28.8 V |
| Number of battery outlets | 2 (max.) |
| Battery capacity range | 280-700 Ah |
| Nominal input voltage | 120/230 V (80-275 V) 50/60 Hz |
| AC connection | screw terminals, suitable up to up to 6 mm² |
| Power supply mode | yes |
| Display/read-out | LED |
| Dimensions, hxwxd | 384 x 250 x 127 mm 15.1 x 9.8 x 5.0 inch |
| Weight | 6.3 kg 13.9 lb |
| Approvals | CE, ABYC, UL1236, SAE J1171, ISO 8846, CEC/DOE, RCM/C-Tick |
| Charge characteristic | IUoUo, automatic / 3-step+ for Gel/AGM/flooded/Lithium Ion + user defined option |
| Temperature compensation | -60 mV/°C / -76 mV/°F; incl. temperature sensor |
| DC voltage compensation | through automatic compensation or MasterShunt |
| Power consumption (DC side) | < 2 mA (MasterBus off) |
| Current Control function | yes, through MasterBus or CZone |
| Power factor control | yes, > 0,98 |
| Temperature range (ambient temp.) | -25 °C to 80 °C, derating > 40 °C -13 °F to 176 °F |
| Cooling | vario fan |
| Protection degree | IP23, vertical mounting |
| Protections | over-temperature, overload, short circuit, high/low battery voltage, ignition protection |
| Charger Status Interface (alarm contact) | yes, using a Multipurpose Contact Output (code 77030500) |
